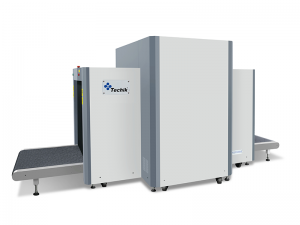

TE-XS100100DB X-ray Baggage Scanner
Scanning image
Technical Parameters:
|
General Specification |
||
|
Tunnel Size |
1010mm(width) ×1010mm(height) | |
|
Conveyor Speed |
0.2m/s | |
|
Conveyor Height |
300mm | |
|
Max. Load |
200kg(even distribution) | |
|
Wire Resolution |
40AWG（0.0787mm of wire）> 44 SWG | |
|
Spatial Resolution |
horizontal Ф1.0mm vertical Ф1.0mm | |
|
Penetrable Resolution |
32AWG（0.202mm) | |
|
Steel Penetration |
40mm | |
|
Monitor |
17-inch color monitor with resolution:1280×1024 | |
| X-ray Generator | ||
|
Anode Voltage |
140-160Kv | |
|
Cooling/Run Cycle |
sealed oil cooling/ 100% | |
|
X-Ray Generator Number |
2 | |
|
Radiation Modality |
top/side radiation | |
|
Per-inspection Dose |
less than 3.0μGy | |
| Image Processing System | ||
| X-ray convertor | L-shaped detector line | |
|
Image Enhancement Features |
color/black & white image ,organic and inorganic elimination ,alterable absorption, super-enhancement, negative mode, high/low energy penetrability, pseudo color etc | |
|
Image Resolution |
organics: orangeinorganic: bluemixture and light metal: green | |
|
Selection and Enlargement |
variable zoom, 1-64 times enlargement, support continuous enlargement | |
|
Image Playback |
50 checked images playback | |
|
Storage Capacity |
at least 100,000 images | |
| Radiation Safety | ||
|
Radiation Leakage |
less than 1.0μGy /h ( 5cm away from shell)comply with all domestic and international health and radiation safety standards | |
|
Film Safety |
in accordance with ASA/ISO1600 film safe standard | |
| System Functions | ||
| TIP(Threat Image Projection), hazardous area alarm,high density alarm, date / time display, baggage counter, user management, system timing, ray beam timing, power on self test, image back-up and search, maintenance and diagnosis, bi-directional scanning | ||
| Optional Functions | ||
| video monitor system/ energy-conservation and environmental-protection equipment/electronic weighing system/speaker/operator training system etc | ||
| Installation Data | ||
| External Dimension | 3911mm(length) ×1735mm(width) ×1790mm(height) | |
| Packing Size | 4100mm(length) ×1900mm(width) ×2000mm(height) | |
| Weight | 1450Kg | |
| Operation Voltage | AC220V(-15%~+10%) 50±3Hz | |
| Power Consumption | 2kVA | |
| Operation Temperature | 0℃±3℃～+40℃±2℃ | |
| Storage Temperature | -40℃±3℃～＋60℃±2℃ | |
| Relative Humidity | 5%～95%(non-condensing) | |
| Noise Level | 56dB(A) | |
