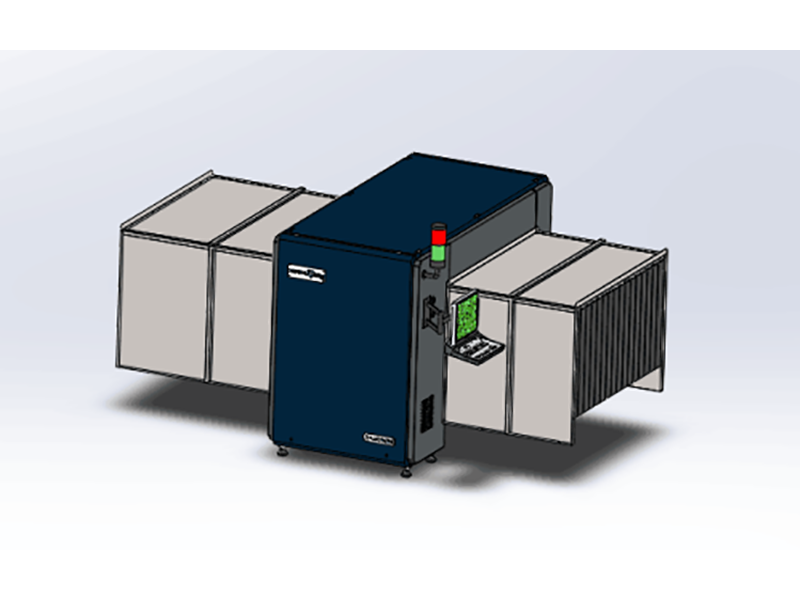

100% Original Factory 5030a – X-Ray Machine - TE-XS140100 Lifting X-ray Baggage Scanner – Techik

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

We have now a skilled, performance group to offer excellent support for our consumer. We usually follow the tenet of customer-oriented, details-focused for Alarm Handhold Metal Detector, Cargo Security Scanning Machine Za6040, Hotel Security Guard Patrol Equipment, Base on the business concept of Quality first, we would like to meet more and more friends in the word and we hope provide the best product and service to you.
100% Original Factory 5030a – X-Ray Machine - TE-XS140100 Lifting X-ray Baggage Scanner – Techik Detail:

Scanning image

rrrrrrr1

Technical Parameters

General Specification

Tunnel Size 1400mm(width) ×1000mm(height)
Conveyor Speed 0.6-0.9m/s
Conveyor Height Customized
Wire Resolution 40AWG(0.0787mm of wire)
Spatial Resolution horizontal Ф1.0mm   vertical Ф1.0mm
Steel Penetration 38mm
Monitor 17-inch color monitor with resolution:1280×1024
X-ray Generator
Anode Voltage 200w,160kv
Cooling/Run Cycle sealed oil cooling/ 100%
Image Processing System
Image Enhancement Features color/black & white image ,organic and inorganic elimination ,alterable absorption, super-enhancement, negative mode, high/low energy penetrability, pseudo color etc
Image Resolution organics: orangeinorganic: blue

mixture and light metal: green

Radiation Safety
Radiation Leakage less than 1.5μGy /h ( 5cm away from shell)comply with all domestic and international health and radiation safety standards
Film Safety in accordance with ASA/ISO1600 film safe standard
Scanning system
AI camera/ Industry camera,  Top/side/Multi scanning
Indicator Functions
Three-colors indicators:Green: on: working ; blink: pause

Yellow: on: trouble

Red: on: emergency on /pause

Blue: on: direct mode

Installation Data
External Dimension 1125mm(length) ×2226mm(width) ×1660mm(height)
Packing Size 1300mm(length) ×2500mm(width) ×1900mm(height)
Weight 900Kg
Operation Voltage AC220V(-15%~+10%)  50±3Hz
Power Consumption 1.5kVA
Operation Temperature 0℃±3℃~+40℃±2℃
Storage Temperature -40℃±3℃~+60℃±2℃
Relative Humidity 30%~95%(non-condensing)

Application


Product detail pictures:

100% Original Factory 5030a – X-Ray Machine - TE-XS140100 Lifting X-ray Baggage Scanner – Techik detail pictures

100% Original Factory 5030a – X-Ray Machine - TE-XS140100 Lifting X-ray Baggage Scanner – Techik detail pictures
